10W LED Round Recessed Panel Light 150mm

Product features:
-Edge-litLED Flat panels for office and commercial lighting
-Slim design (22.5mm) for perfect light output
-Dimmable version available
-Life to 70% lumen maintenance – 50,000 hours
-2-year warranty
-With CE, RoHS, UL compliant

Product Specification:
Item: MB-PR -xx-150/10W
Wattage: 10W
Lumens: 650lm±10%
Dimension: 150x150x22.5mm (LxWxH)
Light Source: SMD3014 High Brightness
Lifespan: 50,000hs
Material: Aluminum alloy + PMMA light guiding plate
Power Factor: >0.90
Beam Angle: 150 degree
Color Temperature: WW (3000-3500k), NW (4000-4500K), CW (6000-6500k)
Input Voltage: AC 85-265V
Output Voltage: 9-12V, 0.9A
Working Temperature: -20~45℃
Storage Temperature: -20~65℃
IP Grade: IP44
Warranty: 2 years
Packing Size: 520*350*300mm (LxWxH), 30PCS/box, 12.3KGs

Part No.      Color CCT/K    Lumen/lm     CRI/Ra    Power/W    Beam Angle/deg.    Voltage/V
MB-PR -CW-150/10W   Cool white   6000-6500k   650lm±10%   >70     10W     150°    AC 85-265V
MB-PR -NW-150/10W   Natural white   4000-4500k   610lm±10% >75    10W    150°    AC 85-265V
MB-PR -WW-150/10W   Warm white   3000-3500k    550lm±10%   >65    10W    150°     AC 85-265V

Product Dimension Diagram:

A: 150mm B: 22.50

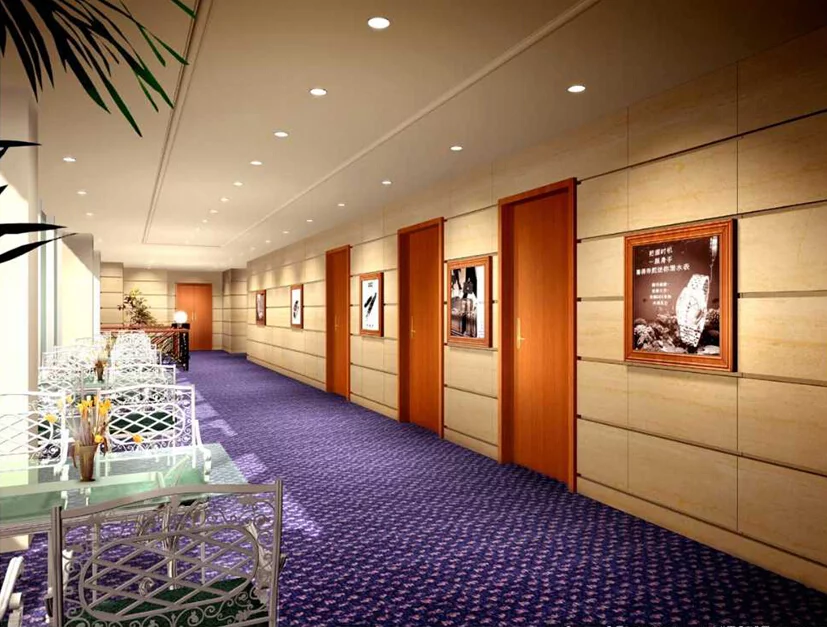

Application:
-Hotel, office, meeting room, exhibition hall
-Residential/Institution buildings
-School, University, Hospitals, etc.

Cautions:
-Power off before replacement
-Do not touch the lamp when lighting
-Indoor use
-Do not use it in air-proof area
-Please consult electricians for in/uninstalling support
